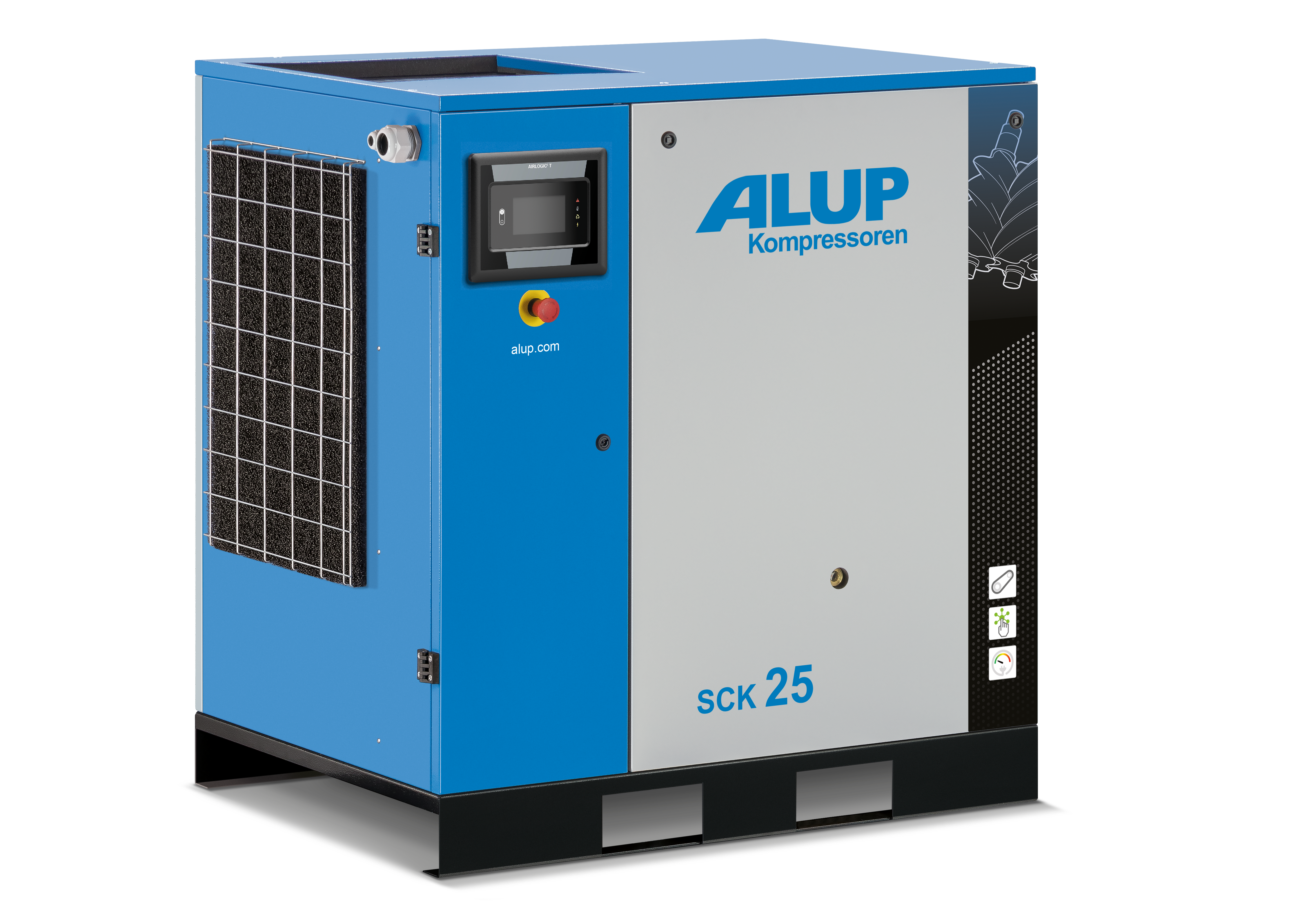

Alup SCK 25-40 series

The ALUP SCK 25–40 series offers a reliable and robust compressor for industrial use. The air output of this series ranges from 2300 to 4300 L/min, with power ratings between 18.5 and 30 kW and operating pressure options of 8, 10, and 13 bar. Available with or without an integrated refrigeration dryer.



The ALUP SCK 25–40 screw compressor is designed to be reliable, compact, easy to maintain, and intuitive to use, ensuring a long service life and low maintenance costs. The ALUP SCK series is a dependable solution for compressed air supply, even in demanding working conditions.



Key Features

  • Compact design: Space-saving and easy to install.

  • Touchscreen control panel: Simple setup, detailed information display, and integrated ICONS.

  • Easy maintenance: Removable panels provide easy access to serviceable components.

  • Large pre-filter: Helps keep the cooling radiator clean and extends the lifespan of the fine filter.

  • Lower noise level: Suitable for noise-sensitive environments.



Technical Specifications

 Model

 Motor (kW)

 Max. pressure (Bar)

  Air output (L/min)

 Noise Level (dB)

 SCK 25

 18.5

 8 / 10 / 13

  3130L/min / 2700L/min  / 2310L/min

 69

 SCK 30

 22

 8 / 10 / 13

  3880L/min / 3210L/min  / 2780L/min

 70

 SCK 40

 30

 8 / 10 / 13

  4330L/min / 3900L/min  / 3430L/min

 71


Why choose the ALUP SCK series?



Compact design: Available both without and with an integrated dryer. Space-saving and easy to install.

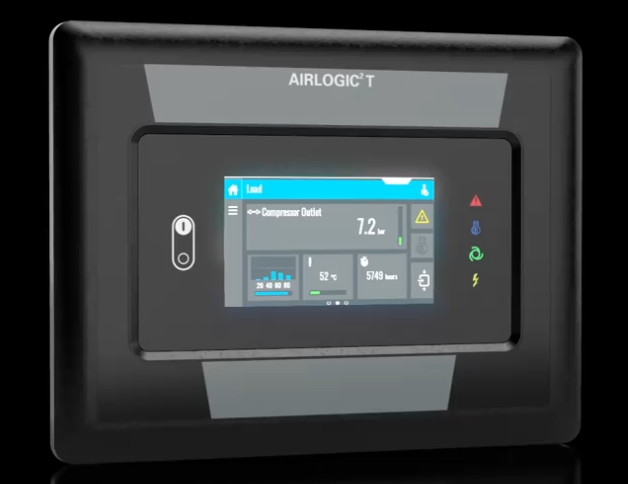

ALUP Airlogic² T touchscreen controller – Designed to meet industrial demands

- High-end touchscreen controller ensuring user-friendliness, efficiency, and reliability.

- Quick adjustment of basic operating parameters such as working pressure.

- Available in up to 30 different languages, including Estonian.

- Displays upcoming maintenance, error messages, error history, load status, and other key operating parameters.

- “Online” real-time compressor operation view for service personnel.

- Integrated with the ICONS smart connectivity system, allowing real-time monitoring of the compressor’s status online accessible to both service technicians and, optionally, the user.

- Sends alerts via SMS and email to service personnel for specific errors and predictive maintenance warnings.

 Thanks to the ICONS solution, it is possible to:

- Prevent future failures or downtime through real-time operational data and early warnings.

- Notify the user in advance of potential downtime to address the root causes proactively.

- Inform the service technician of upcoming maintenance intervals, allowing precise scheduling of service.

- In the event of a failure, display a specific error message to the maintenance team, enabling fast response or even remote user guidance to resolve the initial issue.

- Based on real-time compressor data and usage history, it is possible to individually configure operating parameters for each customer, resulting in significant energy savings.

- Thanks to ALUP's innovative solutions, this helps reduce excessive energy consumption, avoid unexpected downtime, and lower maintenance and repair costs — while ensuring the compressor's reliability and long service life.

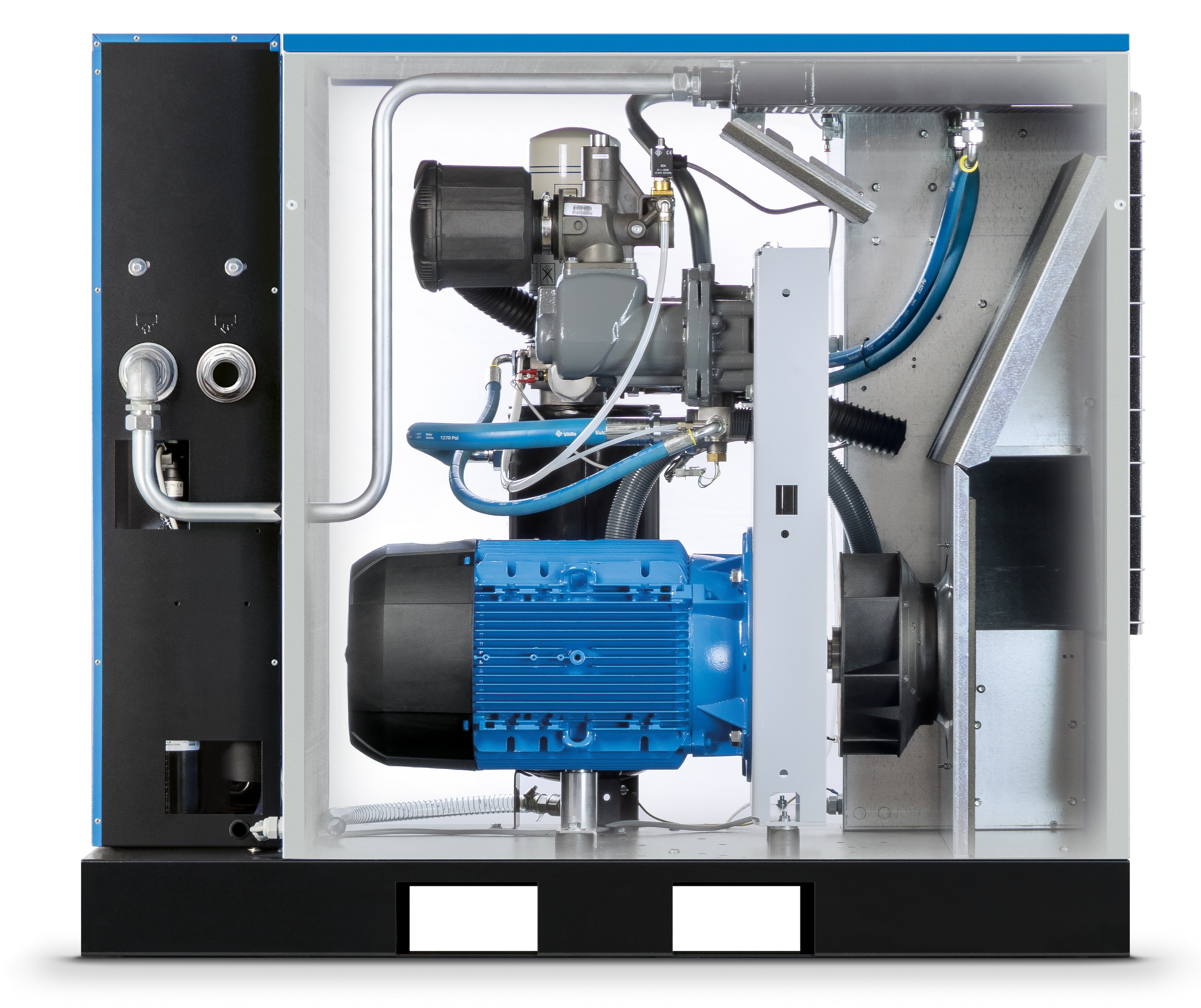

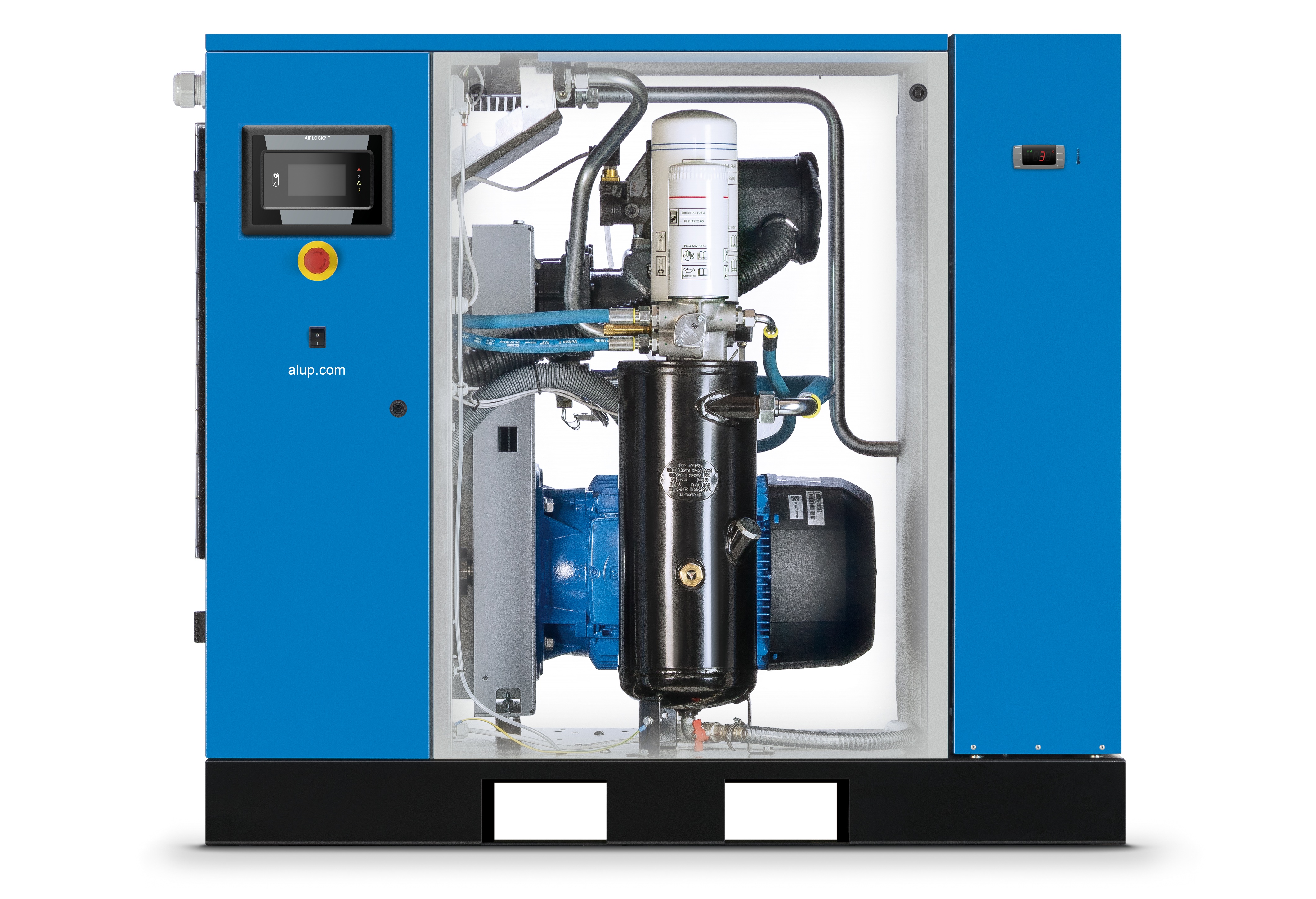

A screw compressor engineered to perfection – Ensures reliability and long service life

- Removable panels provide easy access to components requiring maintenance.

- Large pre-filter helps keep the cooling radiator clean and extends the life of the compressor’s fine filter.

- Cartridge oil filter and oil separator filter make maintenance quick and simple.
