Automatic mechanical condensate drain
Regular price:
66.50 €
Price does not include VAT
| Max. pressure: | 16 Bar |
| Max. water discharge capacity: | 250L/h |
| Inlet connection: | 1/2 Male |
| Outlet connection: | 1/2 Male |

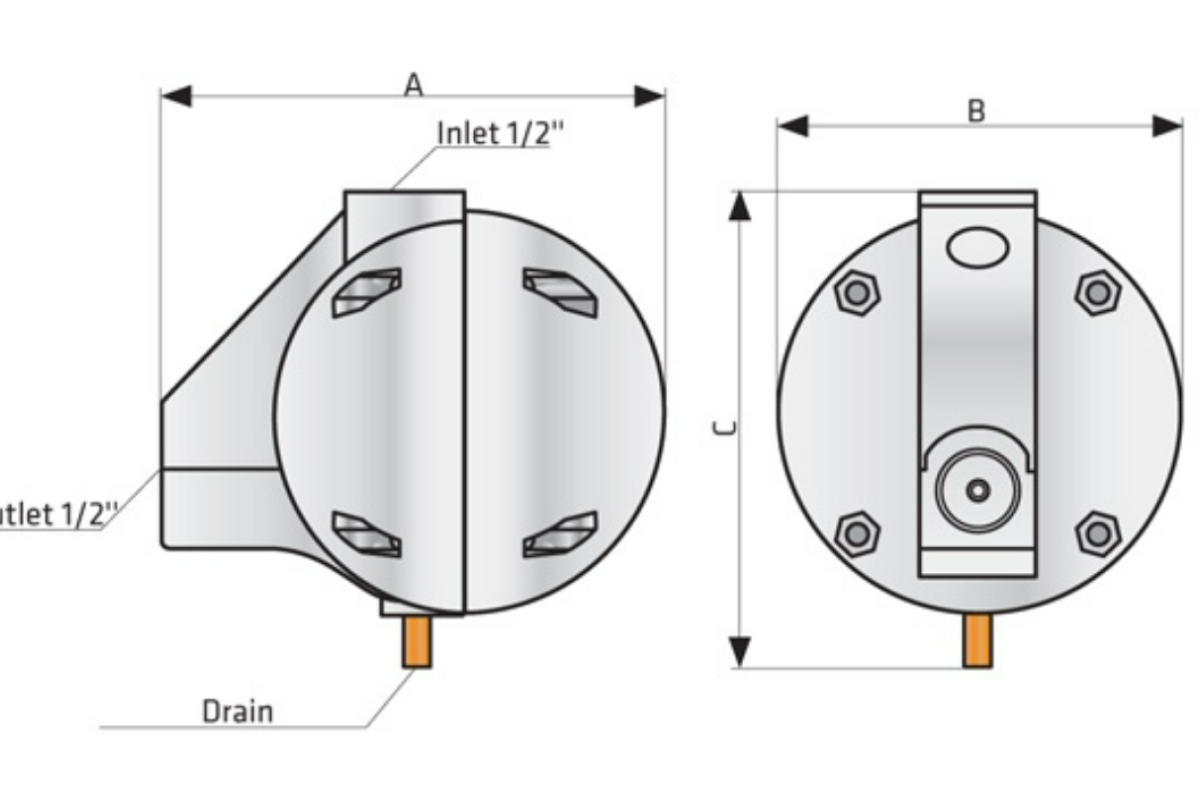

| Long (A): | 130 mm |
| Width (B): | 110 mm |
| Height (C): | 120 mm |
| Weight: | 0,9 Kg |
| In stock | 6 |
Product code: AOK20B
Automatically operating mechanical liquid discharge valve. These are primarily installed on cyclone separators and line filters where there is no internal float. However, they can also be installed under tanks, in compressed air dryers, and on various other compressed air systems where automatic liquid discharge is required. The main advantage of this liquid separator is its high flow capacity, reaching up to 250L/h.
